LP530 LED additional light kits | PIAA

References:

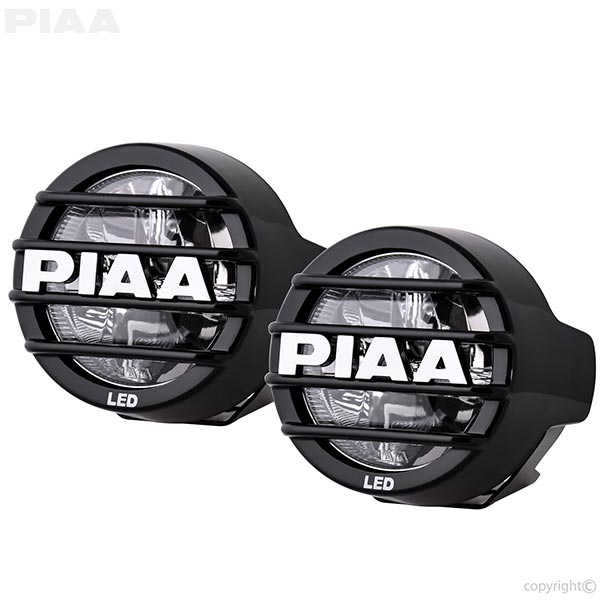

• DK535BGA: White high beam kit.
• DK536GA: Yellow high beam kit.
• DK537BEGA: White fog light kit.

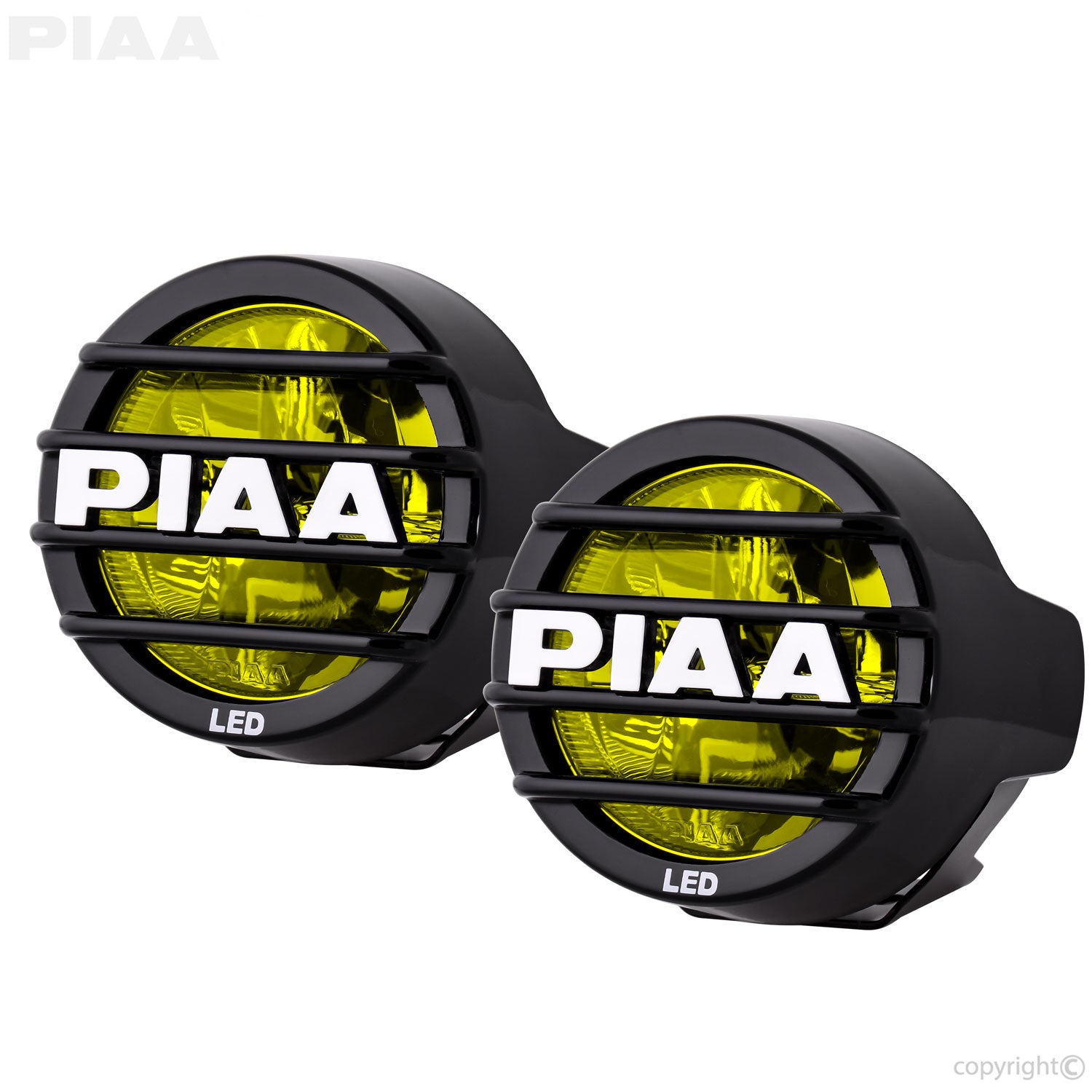

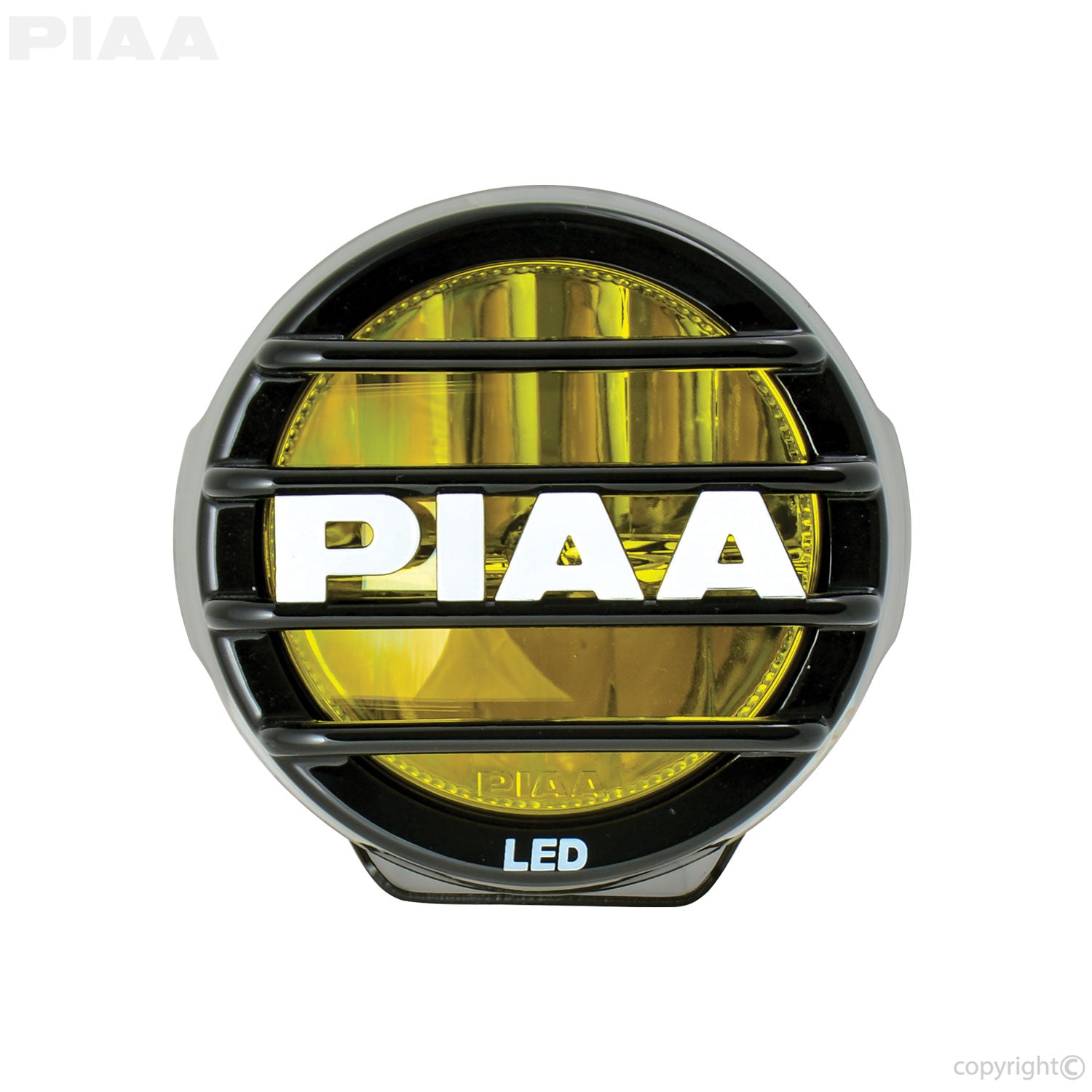

• DK538XG: Yellow fog light kit.

Features of LP530 kits

DK535BG	DK536G	DK537BEG	DK538XG
Road	Road	Fog lights	Fog lights
3.5"	3.5"	3.5"	3.5"
12 V	12 V	12 V	12 V
Total power 9.4 W	Total power 9.4 W	Total power 8 W	Total power 8 W
Rear-facing LEDs	Rear-facing LEDs	Rear-facing LEDs	Rear-facing LEDs
White	Yellow ion	White	Yellow ion
6,000 K	2,500 K	6,000 K	2,500 K
Vibration index 10 G	Vibration index 10 G	Vibration index 10 G	Vibration index 10 G
IP67 waterproofing	IP67 waterproofing	IP67 waterproofing	IP67 waterproofing
Cast aluminum housing	Cast aluminum housing	Cast aluminum housing	Cast aluminum housing
Polycarbonate lens	Polycarbonate lens	Polycarbonate lens	Polycarbonate lens
D 74 mm x H 84 mm x W 90 mm	D 74 mm x H 84 mm x W 90 mm	D 74 mm x H 84 mm x W 90 mm	D 74 mm x H 84 mm x W 90 mm
ECE approved	ECE approved	ECE approved	ECE approved

The LP530 LED high beams provide a powerful beam while providing better side illumination.

Reflector Facing technology precisely controls power for improved beam definition, compliant with SAE-Y standard, eliminating glare to other road users.

The yellow LEDs provide a personalized look. Much less reflective in adverse weather conditions (rain, snow, fog, dust), the yellow beam produces a peak light, for improved safety.

The PIAA LED fog light kit offers the beam control of a halogen type light with the low power consumption and superior durability of an LED light. LEDs offer, compared to halogens, very low power consumption, a compact size and an increased lifespan.

Advantages of orienting LEDs towards the reflector

Unlike most LED lamps positioned directly forward, LP530 lamps direct the LEDs towards the reflector . The light source thus directed allows:

• better beam control;
• better performance.

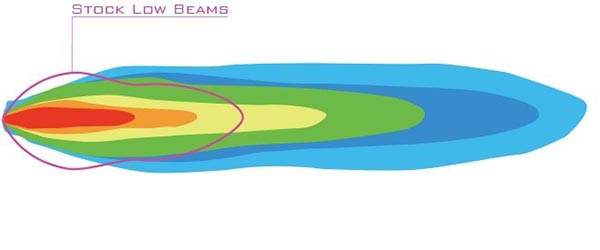

Reflector Facing technology combined with the LP530's size makes it one of the most powerful small LED lights on the market. The beam of light shines well beyond trails and verges, filling in the dark areas of low beams. The integrated Reflector Facing technology precisely controls the light output, allowing it to cut through fog, dust, and snow.

The beam produced by the LP530 LED complies with the SAE-F standard. It eliminates the risk of dazzling oncoming vehicles.

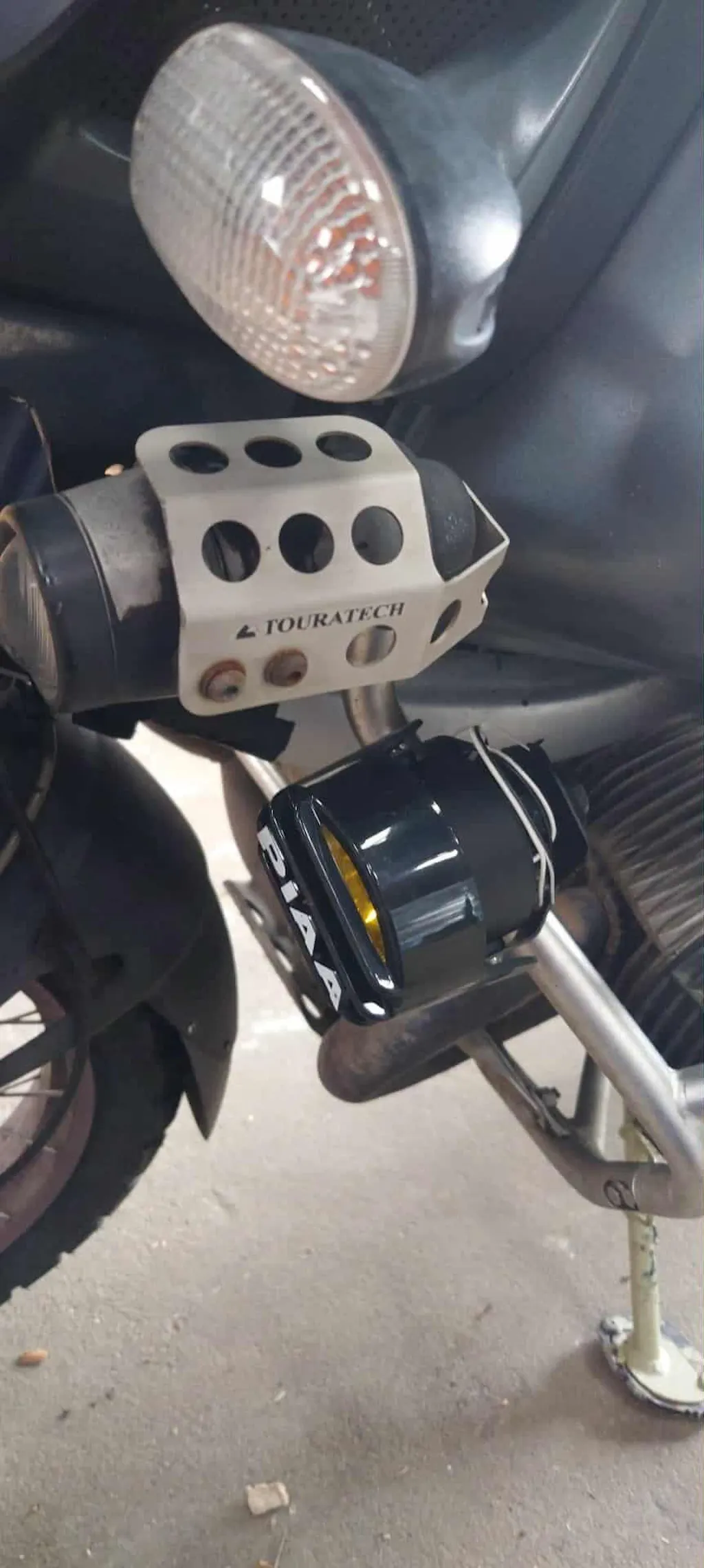

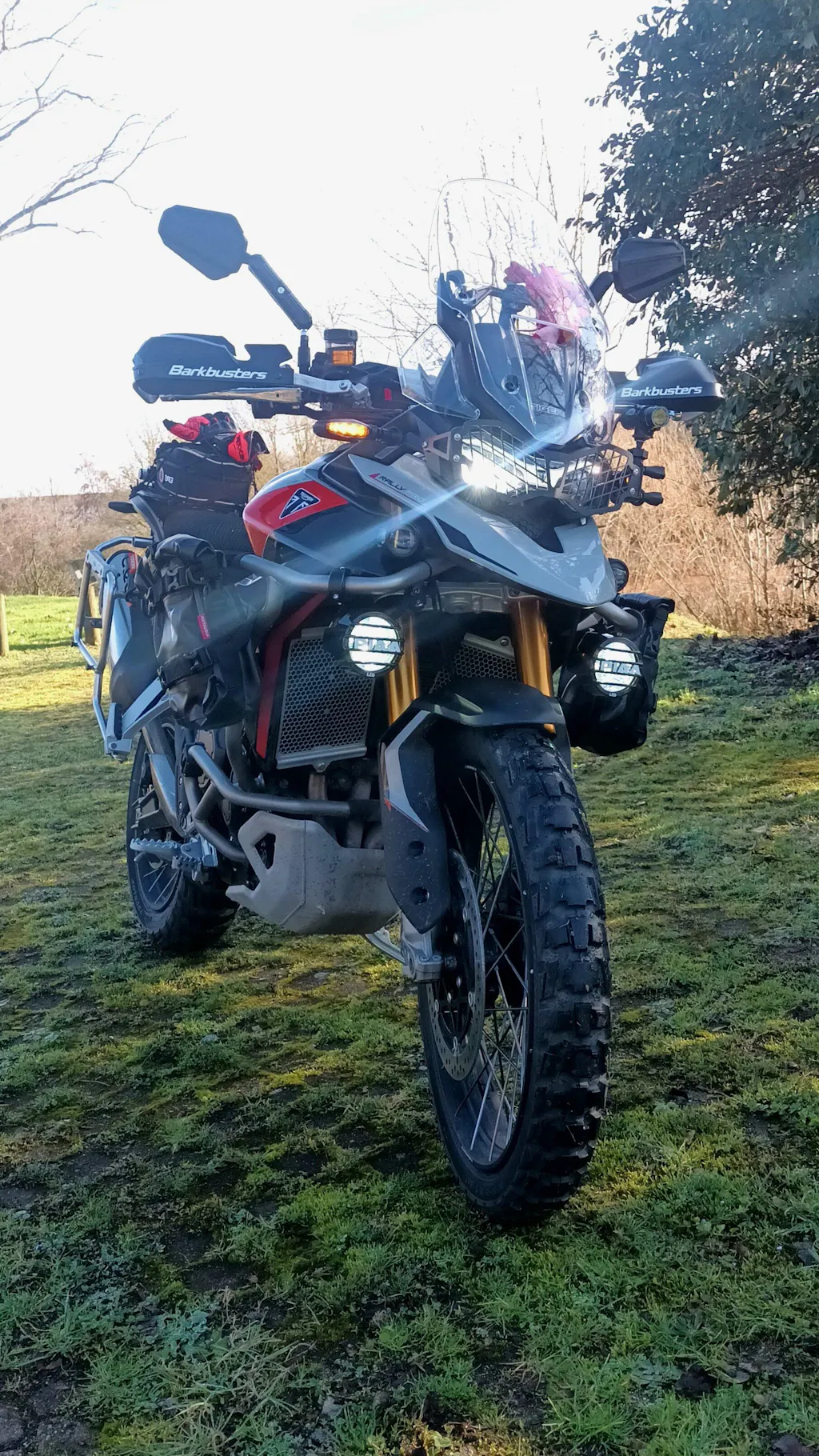

The LP530 LED light kit is one of the most versatile lights in the PIAA range. Its compact and durable size allows it to be mounted virtually anywhere.

Scope of delivery per Kit

• 2 headlights;
• 2 grids;
• harness, relay and fuse;

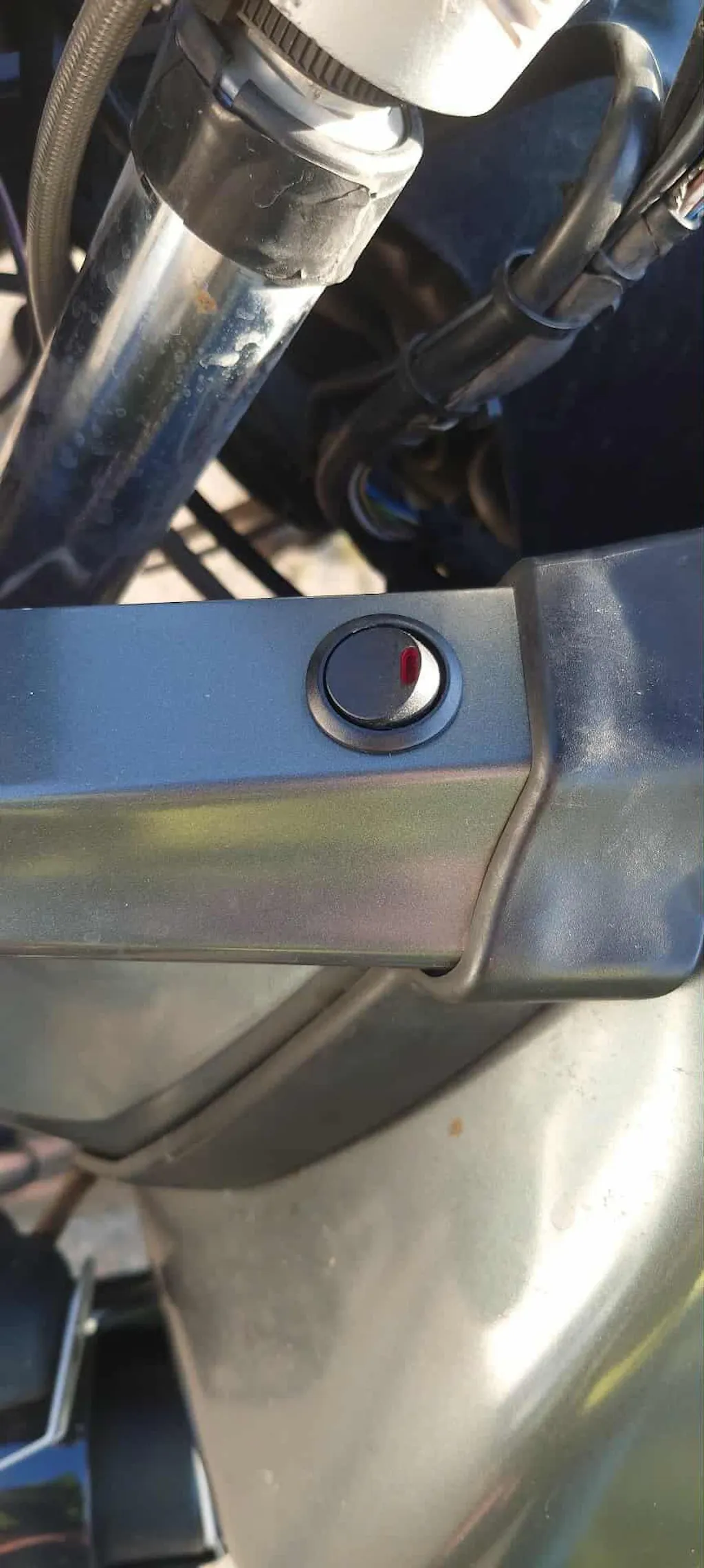

• switch with indicator light;
• installation instructions.

Accessories

LP530 kit assembly instructions (PDF 642.25 KB)
